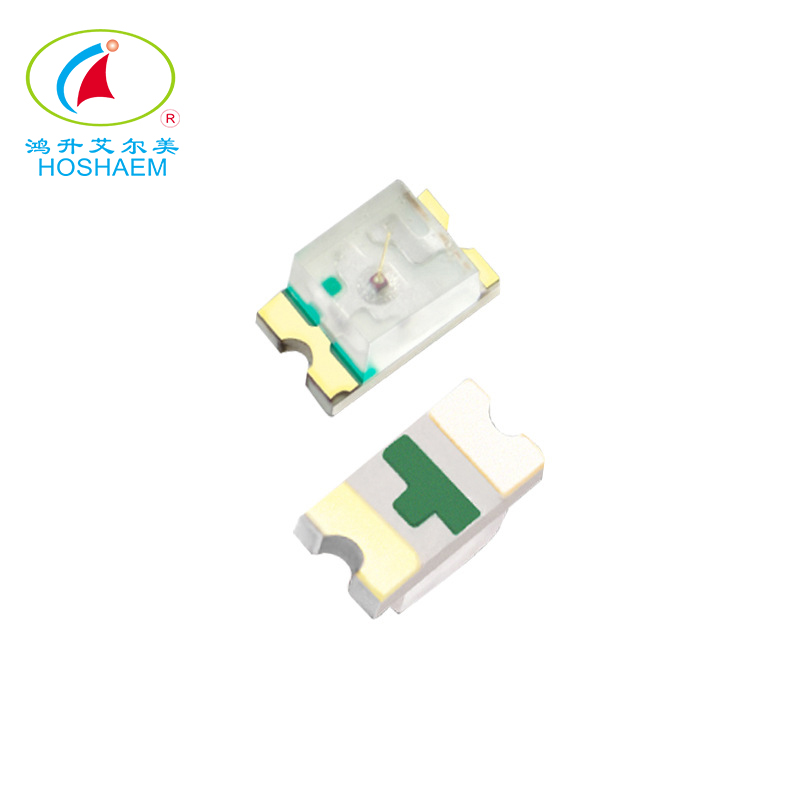

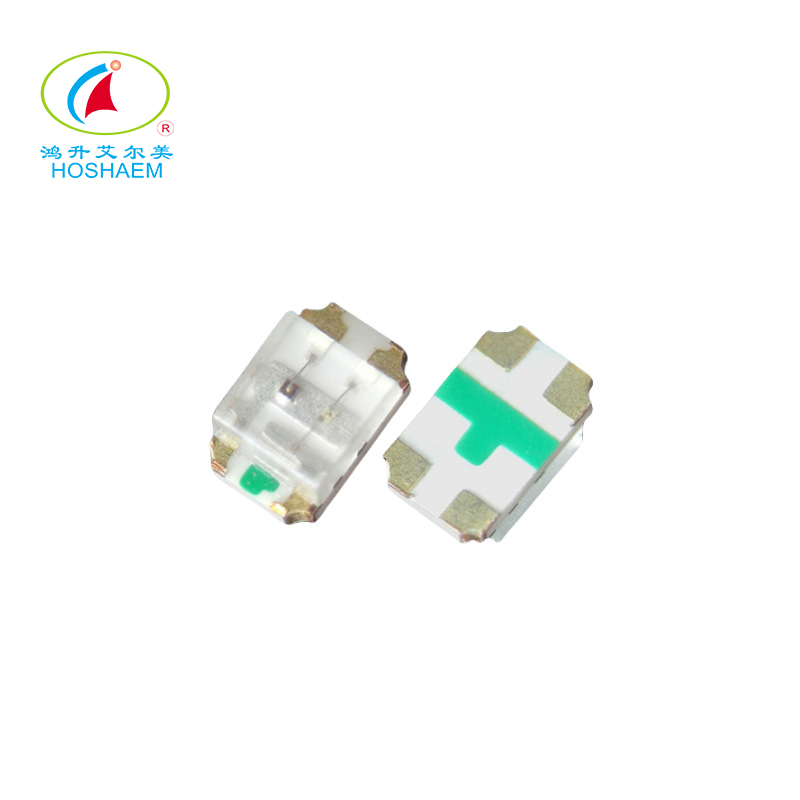

Hongsheng 0805 Dual Color Red Yellow Green Blue LED Chips Customized SMD Patch Type Light-emitting Diode Manufacturer

Product brand: Hongsheng HOSHAEM

Product model: 0805 dual color

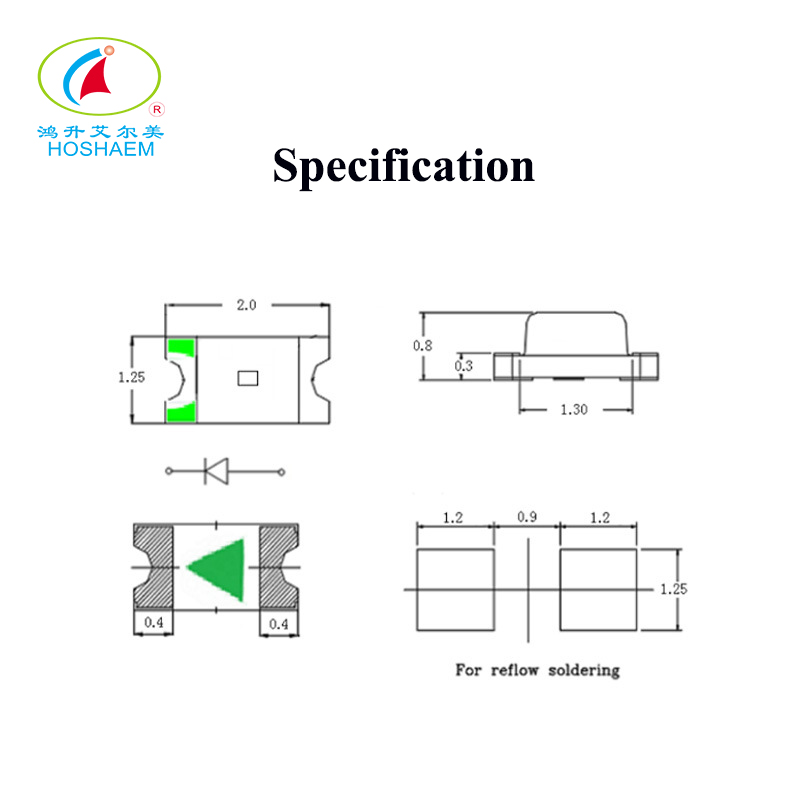

Product size: 2.0 * 1.25 * 1.0MM

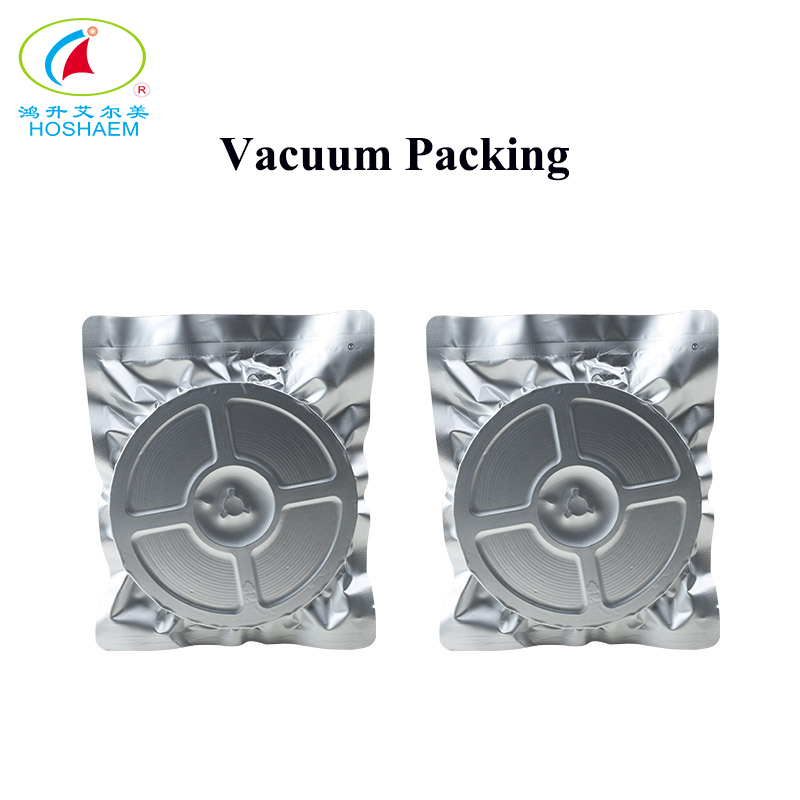

Product packaging: 3000 PCS/roll

Luminous colors: red yellow/red green/red blue/green blue/yellow green (colors can be customized according to customer needs)

Spectral current: 5MA

Luminous brightness: 100-3000MCD

Luminous wavelength: 460-630NM

Spectral voltage: 1.8-3.0V

Luminous angle: 120 °

Service life: 50000 hours

    oops...!

    no product data.

    Go to homepage

    Product Features:

    1. Small size: LED is basically a very small chip encapsulated in epoxy resin, so it is very small and lightweight.

    2. Low power consumption: LEDs consume very little power and operate at a voltage of 2-3.6V. The working current is 0.02-0.03A (for ordinary indicator lights, 1mA is sufficient). This means that it consumes no more than 0.1W of electricity.

    3. Long service life: Under appropriate current and voltage, the service life of LED can reach over 50000 hours.

    4. High brightness, low heat, environmentally friendly: LEDs are made of non-toxic materials, unlike fluorescent lamps that contain mercury and can cause pollution. At the same time, LEDs can also be recycled and reused.

    5. Durable and sturdy: LEDs are completely encapsulated in silicone grease, making them stronger than light bulbs and fluorescent tubes. There are no loose parts inside the lamp body, which makes the LED less prone to damage.

    6. The brightness is continuous and easy to control, and can be adjusted continuously through current or simple PWM: the product is widely used in the new energy vehicle industry, small household appliance digital tubes, smart homes, set-top box industry, sports and outdoor products, Bluetooth digital products, signal indicators, car instrument lighting, lighting fixtures, mobile phone backlighting and LED energy light strips, toy game consoles, household appliances, communication products, instruments, LCD backlighting, signal indicator lights, lighting fixtures, car taillights and instruments, LED large display screen application products and other fields, providing customers with high-quality and affordable products.



    Processing Advantages:

    ① Our company uses fully automatic solidification machines and wire bonding machines to ensure product consistency. The products are made of Taiwanese chips, heat-resistant epoxy resin adhesive, and gold wire to ensure product stability;

    ② Low light decay,<2% every 3000 hours, extending service life;

    ③ Ultra low heat generation, high brightness;

    ④ Long service life, under normal circumstances, the applicable life can reach up to 50000 hours, which is 5-10 times that of ordinary energy-saving lamps;

    ⑤ Fast lighting, with a time of less than 100 nanoseconds (NS);

    ⑥ Electrostatic protection is safer.



    Notes:

    1. Pay attention to moisture prevention and store at a temperature of 5-30 ° C. Dry and cool environment with humidity below 85%. If it gets damp, the patch reel should be placed in a 60 ° C oven;

    2. Surface mounted LED light-emitting diodes are packaged with silicone filling, which is relatively soft and cannot be pressed on the front to avoid breaking the gold wire or damaging the chip;

    3. Take out the reel from the packaging bag and preferably weld the patch within 12 hours;

    4. SMT LED light-emitting diodes use reflow soldering and cannot be soldered wit
